Schonstedt Magnetic Locator (#GA-52CX)

Schonstedt’s underground magnetic locators have been setting the standards for reliability and dependability for over 50 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions.

  • High levels of sensitivity allow you to find what you’re looking for quickly, without the risk of passing over your target.
  • 85% of the Surveyor market can’t be wrong.
  • Rapid response
  • Locates quickly and easily
  • Always on target

GA-52Cx Manual

GA-52Cx Parts Diagram

Manufacturer Part Number: GA-52CX
Stock # GA-52CX
Price: $963.00
Compare At: $1,035.00

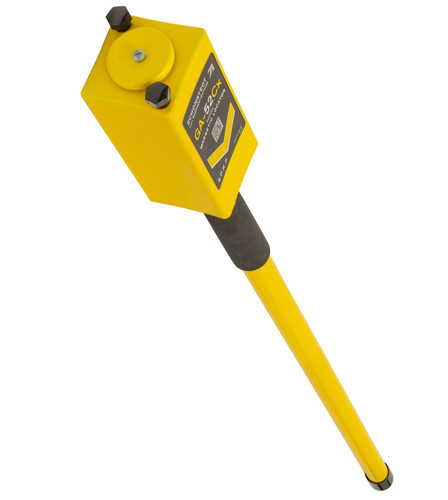

Schonstedt Magnetic Locator (#GA-52CX)
Click Image to Enlarge
Schonstedt Magnetic Locator (#GA-52CX)


The GA-52Cx Locator detects the magnetic field of iron and steel objects, with unmatched sensitivity. Audio detection signals peak in frequency when the locator's tip is held directly over the target.

Only two controls! Designed for one-hand operations, the on/off sensitivity and volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

  • High Sensitivity with 5 Levels
  • Audio Output
  • No response to aluminum, brass, or copper
  • HeliFlux® sensors
  • Modular construction; high performance components
  • Two 9V Batteries (in unit)
  • Carrying Case
  • 7-year warranty
INPUT POWER Supplied by two 9V batteries
BATTERY LIFE 40 hours (intermittent usage)
OUTPUT Approximately 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity.
WEIGHT Approximately 2.5 lb (1.13 kg)
OPERATING TEMP -13° to 140°F (-25° to 60°C)
OVERALL LENGTH 42.5" (107.4 cm)
WATERPROOF LENGTH 34.5" (87.6 cm)
CONSTRUCTION Rugged, modular all solid state in aluminum casing
